Penetration grade bitumen, an essential material in road construction, is produced in refineries with precisely controlled viscosities. To assess its hardness, manufacturers conduct a penetration test, which gives this type of bitumen its name. Moreover, the test measures how deeply a standard needle penetrates the bitumen under specific conditions, enabling engineers to select the best-suited grade for various applications. The grades cover a range from 15 to 450 for road bitumen; however, the 25 to 200 range remains the most popular in construction due to its ideal hardness.

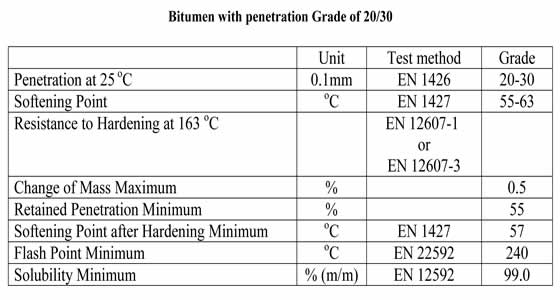

For the production process, a highly controlled distillation process helps achieve the target hardness. Additionally, by blending residual bitumen with specific oils, manufacturers can fine-tune the bitumen’s hardness for specialized needs. Furthermore, standards like BS EN 1426 and BS EN 1427 establish the penetration and softening point values, simplifying the identification process. As a result, professionals can easily match the bitumen grade to the project’s requirements. For instance, a 40/60 grade, with a penetration value around 50 ± 10, provides consistent and reliable performance in many environments.
To ensure high quality, BS EN 13303 sets limits on heating loss, which aims to control the presence of volatile components in each penetration grade bitumen. Thus, these stringent standards are essential in maintaining bitumen’s reliability and preventing unexpected performance issues. Moreover, by adhering to these guidelines, construction teams gain confidence in the bitumen’s quality, which ultimately supports long-lasting results.
In conclusion, each penetration grade bitumen is designated according to penetration and softening point tests, focusing only on penetration ranges. Consequently, this approach helps simplify selection and ensures that construction professionals choose the right grade, enabling bitumen to perform well under a wide range of conditions.
To fully evaluate bitumen’s hardness and performance, the penetration test stands out as an essential assessment. Specifically, this test involves subjecting a needle to a sample of bitumen under precisely controlled conditions of time, temperature, and load. Typically, the test occurs at 25°C with a 100g load applied over 5 seconds, providing a depth measurement in tenths of a millimeter (dmm). For example, when the test results show a penetration of 200 dmm, it corresponds to 200 pen bitumen under these set conditions, which offers an easily understandable indicator of bitumen’s hardness.
In some cases, low-temperature bitumen requires testing under colder conditions to ensure reliability in specific climates. For these situations, the setup shifts to a temperature of 5°C with a 200g load over 60 seconds. With this setup, the test accurately reflects how bitumen behaves in colder environments, making it a critical step for applications where temperature resilience is a priority. Consequently, this measurement helps confirm that bitumen maintains its properties in challenging conditions, a vital factor for projects facing colder climates.
Beyond the penetration test, the softening point test provides another valuable perspective on bitumen’s properties, especially regarding its temperature response. This test entails creating discs of bitumen and heating them to determine the temperature at which they can no longer support a standard metal ball. Interestingly, at the softening point, most unmodified bitumens show similar penetration (around 800 dmm) and viscosity (approximately 1200 Pas), highlighting their equip-viscous temperature (EVT). By combining the penetration and softening point values, engineers can determine the Penetration Index (PI), which further clarifies how temperature impacts bitumen’s properties. Higher PI values reveal increased temperature susceptibility, an important detail for certain markets, especially in Europe, where PI often plays a part in product specifications.
The penetration test offers several advantages, especially due to its operating temperature of 25°C, which aligns closely with the average temperature of many pavements. As a result, the test delivers an accurate picture of bitumen’s real-world performance. Notably, it also shows stronger correlations with low-temperature asphalt properties than viscosity tests, typically conducted at 60°C. This makes the penetration test especially useful in cooler climates. Additionally, by running the test at temperatures other than 25°C, engineers gain insights into temperature susceptibility, a crucial parameter for regions that experience seasonal fluctuations. Although the test doesn’t measure fundamental engineering properties such as viscosity, and the high shear rate may influence results due to asphalt’s non-Newtonian behavior at 25°C, it remains one of the most insightful ways to analyze bitumen’s adaptability and effectiveness under variable conditions.
In summary, the combination of penetration and softening point tests offers a comprehensive view of bitumen’s performance across temperatures. Together, these tests equip engineers with the data they need to specify the correct bitumen grade, aligning products with the needs of climates and project requirements to optimize pavement durability and reliability.
